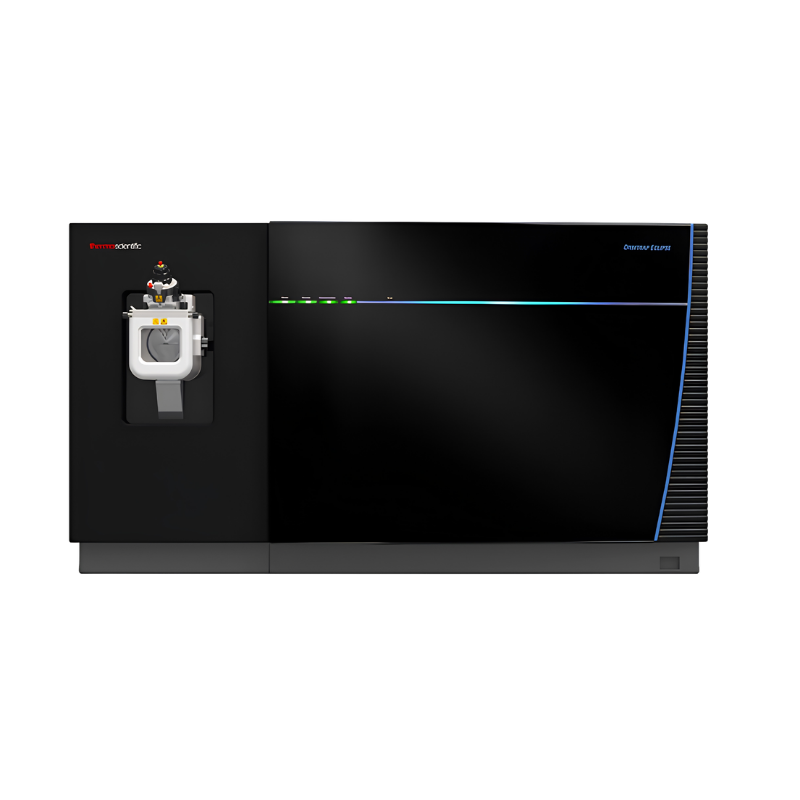

Orbitrap Eclipse™ Tribrid™ Mass Spectrometer
Dapatkan wawasan berkepercayaan tinggi untuk molekul yang sangat kompleks dengan Orbitrap™ Eclipse™ Tribrid™ Mass Spectrometer. Instrumen ini menggabungkan keserbagunaan dan kemudahan penggunaan terdepan di industrinya dengan performa luar biasa dari kecerdasan buatan terintegrasi (built-in intelligence) serta arsitektur Tribrid™ yang revolusioner untuk menjawab tantangan analitikal yang paling rumit
Platform Tribrid terbaru ini dilengkapi dengan Advanced Ion Management Technology (AIM+) yang memuat filter massa quadrupole tersegmentasi QR5 terbaru, fitur Real-Time Search, Enhanced Vacuum Technology, serta opsi Proton Transfer Charge Reduction (PTCR) dan mode High Mass Range MSn (HMRn). Secara kolektif, fitur-fitur ini menjadikan instrumen ini sangat ideal untuk kuantifikasi proteom penuh high-throughput yang akurat, karakterisasi campuran kompleks protein atau farmasi berbasis molekul kecil, hingga penguraian struktur protein tingkat tinggi (higher-order protein structures). Orbitrap Eclipse Tribrid MS mempermudah Anda dalam menangani analisis kompleks dan mengumpulkan data berkualitas tinggi untuk mendukung pengambilan keputusan yang tepat di laboratorium Anda.
Keunggulan dan Fitur Utama:
Selektivitas & Sensitivitas Prekursor Luar Biasa: Didukung filter massa quadrupole generasi terbaru untuk pemisahan ion target yang sangat presisi.
Kedalaman & Akurasi Analisis TMT Tak Tertandingi: Memanfaatkan teknologi Real-Time Search terbaru untuk mengoptimalkan kuantifikasi multiplexed.
Opsi High Mass Range MSn (HMRn): Memungkinkan analisis komprehensif untuk kompleks protein native bermassa tinggi.
Opsi Proton Transfer Charge Reduction (PTCR) Unik: Menyederhanakan spektrum top-down yang kompleks untuk interpretasi data yang lebih mudah dan akurat.
Fleksibilitas Eksperimen Penuh: Kontrol instrumen yang revolusioner memberikan kebebasan dalam pengaturan metode dan alur kerja laboratorium.
Keserbagunaan Luar Biasa: Menyediakan beragam fungsionalitas opsional yang dapat disesuaikan dengan kebutuhan riset tingkat lanjut.
Antarmuka Pengguna Terintegrasi: Berbagi antarmuka pengguna (user interface) yang sama dengan spektrometer massa Orbitrap Exploris™ 480 dan TSQ™ Triple Quadrupole, memudahkan fleksibilitas operasional bagi tim laboratorium.
Tribrid MS
| Specifications | |
|---|---|
| Dimensions (D x W x H) | 30 x 50 x 28 in. (77 x 127 x 70 cm) |
| Dynamic Range | >5000 with a single OTMS spectrum |
| Mass Accuracy | Orbitrap mass accuracy: <3 ppm RMS using external calibration <1 ppm RMS using internal calibration |
| Model | Tribrid MS |
| Polarity Switching | One Full Cycle in < 1.1 sec |
| Scan Rates | OTMSn: Up to 40 Hz ITMSn: Up to 45 Hz |
| Weight (Metric) | 180 kg (400 lb.) |
| Mass Range | Standard mass range: 50 to 2000 m/z Mid mass range: 200 to 6000 m/z Optemonal HMRn mass range: 500 to 8000 m/z |
| Max. Resolution | Up to 500,000 at m/z 200 |
| Type | Orbitrap LC-MS |
| Unit Size | Each |
Tribrid MS Easy-IC
| Specifications | |
|---|---|
| Dimensions (D x W x H) | 30 x 50 x 28 in. (77 x 127 x 70 cm) |
| Dynamic Range | >5000 with a single OTMS spectrum |
| Mass Accuracy | Orbitrap mass accuracy: <3 ppm RMS using external calibration <1 ppm RMS using internal calibration |
| Model | Tribrid MS Easy-IC |
| Polarity Switching | One Full Cycle in < 1.1 sec |
| Scan Rates | OTMSn: Up to 40 Hz ITMSn: Up to 45 Hz |
| Weight (Metric) | 180 kg (400 lb.) |
| Mass Range | Standard mass range: 50 to 2000 m/z Mid mass range: 200 to 6000 m/z Optemonal HMRn mass range: 500 to 8000 m/z |
| Resolution | 7500 to 500,000 (FWHM) at m/z 200 |
| Type | Orbitrap LC-MS |
| Unit Size | Each |
Tribrid MS Easy-ETD
| Specifications | |
|---|---|
| Dimensions (D x W x H) | 30 x 50 x 28 in. (77 x 127 x 70 cm) |
| Dynamic Range | >5000 with a single OTMS spectrum |
| Mass Accuracy | Orbitrap mass accuracy: <3 ppm RMS using external calibration <1 ppm RMS using internal calibration |
| Model | Tribrid MS Easy-ETD |
| Polarity Switching | One Full Cycle in < 1.1 sec |
| Scan Rates | OTMSn: Up to 40 Hz ITMSn: Up to 45 Hz |
| Weight (Metric) | 180 kg (400 lb.) |
| Mass Range | Standard mass range: 50 to 2000 m/z Mid mass range: 200 to 6000 m/z Optemonal HMRn mass range: 500 to 8000 m/z |
| Resolution | 7500 to 500,000 (FWHM) at m/z 200 |
| Type | Orbitrap LC-MS |
| Unit Size | Each |
Tribrid MS PTCR
| Specifications | |
|---|---|
| Dimensions (D x W x H) | 30 x 50 x 28 in. (77 x 127 x 70 cm) |
| Dynamic Range | >5000 with a single OTMS spectrum |
| Mass Accuracy | Orbitrap mass accuracy: <3 ppm RMS using external calibration <1 ppm RMS using internal calibration |
| Model | Tribrid MS PTCR |
| Polarity Switching | One Full Cycle in < 1.1 sec |
| Scan Rates | OTMSn: Up to 40 Hz ITMSn: Up to 45 Hz |
| Weight (Metric) | 180 kg (400 lb.) |
| Mass Range | Standard mass range: 50 to 2000 m/z Mid mass range: 200 to 6000 m/z Optemonal HMRn mass range: 500 to 8000 m/z |
| Resolution | 7500 to 500,000 (FWHM) at m/z 200 |
| Type | Orbitrap LC-MS |
| Unit Size | Each |
Tribrid MS Upgrade to Easy-IC
| Specifications | |
|---|---|
| Dynamic Range | >5000 within one spectrum |
| Mass Accuracy | Internal: <1 ppm RMS External: <3 ppm RMS |
| Model | Tribrid MS Upgrade to Easy-IC |
| Polarity Switching | One Full Cycle in <1.1 Sec (One Full Positive Mode Scan and One Full Negative Mode Scan (at a Resolution Setting of 30,000)) |
| Scan Rates | MSn for n = 1 through 10 |
| Sensitivity | MS/MS: 100 fg Reserpine on Column S/N 200:1; test requires HESI II probe. |
| Weight (Metric) | 180 kg (400 lb.) without data system, vacuum rough pumps and optional items |
| Mass Range | Standard mass range: 50 to 2000 m/z Mid mass range: 200 to 6000 m/z Optemonal HMRn mass range: 500 to 8000 m/z |
| Resolution | 500,000 at m/z 200 |
| Type | Orbitrap LC-MS |
| Unit Size | Each |
Tribrid MS Easy-ETD to PTCR
| Specifications | |
|---|---|
| Dynamic Range | >5000 within one spectrum |
| Mass Accuracy | Internal: <1 ppm RMS External: <3 ppm RMS |
| Model | Tribrid MS Easy-ETD to PTCR |
| Polarity Switching | One Full Cycle in <1.1 Sec (One Full Positive Mode Scan and One Full Negative Mode Scan (at a Resolution Setting of 30,000)) |
| Scan Rates | MSn for n = 1 through 10 |
| Sensitivity | MS/MS: 100 fg Reserpine on Column S/N 200:1; test requires HESI II probe. |
| Weight (Metric) | 180 kg (400 lb.) without data system, vacuum rough pumps and optional items |
| Mass Range | Standard mass range: 50 to 2000 m/z Mid mass range: 200 to 6000 m/z Optemonal HMRn mass range: 500 to 8000 m/z |
| Resolution | 500,000 at m/z 200 |
| Type | Orbitrap LC-MS |
| Unit Size | Each |
