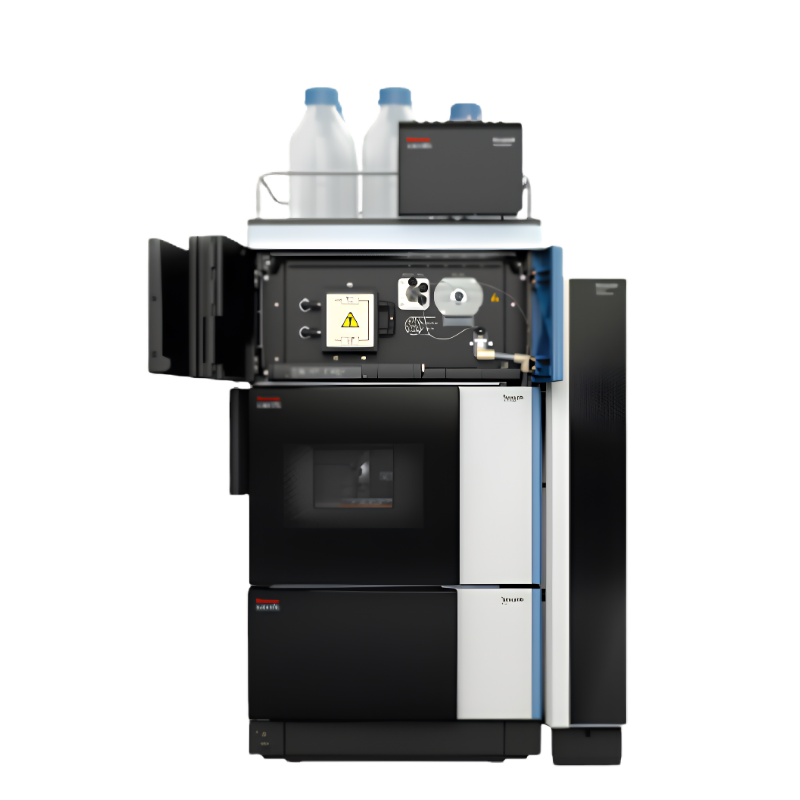

Vanquish Charged Aerosol Detector P series
Performa yang nyata di depan mata. Deteksi dan kuantifikasi seluruh analit non-volatil serta berbagai analit semi-volatil dengan penuh keyakinan menggunakan Thermo Scientific™ Vanquish™ Charged Aerosol Detectors.
Perluas rentang deteksi Anda dan dapatkan kuantifikasi akurat dalam analisis High-Performance Liquid Chromatography (HPLC) dengan Charged Aerosol Detector (CAD) yang hampir universal. Deteksi dan kuantifikasi analit non-volatil dan banyak analit semi-volatil dengan penuh keyakinan. Thermo Scientific™ Vanquish™ CADs memberikan respons yang sensitif dan konsisten di seluruh kelas senyawa, membantu Anda mengukur secara akurat baik pengotor tingkat rendah maupun senyawa konsentrasi tinggi dalam satu analisis tunggal.
Mengapa Memilih Vanquish™ Charged Aerosol Detector? Kuantifikasi analit non-volatil dan banyak analit semi-volatil dengan penuh kepastian. Sistem Vanquish CAD menggabungkan deteksi yang hampir universal, kuantifikasi analit tak dikenal yang andal dengan satu kalibran (single-calibrant), sensitivitas superior dibandingkan ELSD, dan kompatibilitas penuh dengan metode gradien. Menyederhanakan proses kuantifikasi dari pengotor tingkat jejak (trace) hingga senyawa dengan konsentrasi tinggi.
Dirancang Menyesuaikan Alur Kerja Anda Seri Vanquish™ CAD P meningkatkan reproduktifitas, menyederhanakan transfer metode, mendukung kepatuhan regulasi (compliance), dan terintegrasi mulus dengan platform CDS pilihan Anda.
-
Tingkatkan Akurasi Kuantifikasi & Kurangi Risiko Kontaminasi Dilengkapi katup pengalih (diverter valve) terintegrasi untuk kontrol jalur aliran yang lebih baik.
-
Tingkatkan Ketahanan & Reproduktifitas Metode untuk Analit Semi-volatil Menggunakan mode penggandengan suhu (temperature coupling mode) di dalam modul deteksi pengisian (charging detection module).
-
Percepat Pengembangan Metode & Optimalkan Respons Detektor Menawarkan empat tingkat daya simultan serta dukungan untuk alur kerja gradien terbalik (inverse gradient workflows).
-
Sederhanakan Transfer Metode Antar Generasi CAD Menyediakan alat translasi metode bawaan di dalam Chromeleon™ CDS.
-
Tetap Gunakan CDS & Alur Kerja Pilihan Anda Kompatibel dengan kontrol Chromeleon™ CDS dan integrasi Thermo Scientific™ SII menggunakan Empower™ dan OpenLab CDS; serta kompatibel dengan hampir semua sistem LC.
-
Dukungan Operasi Kepatuhan & Penyederhanaan Kualifikasi Dilengkapi dengan alat untuk audit kontrol jalur aliran, kualifikasi, dan pengujian fungsional.
Penawaran Produk
-
Vanquish™ CAD P Series
Vanquish™ CAD HP
Vanquish™ CAD FP -
Integrasi dengan Instrumen HPLC/UHPLC lainnya
Tersedia opsi Output Digital dan Analog -
Vanquish™ CAD Generasi Sebelumnya (Legacy)
Vanquish™ CAD H
Vanquish CAD H
| Specifications | |
|---|---|
| Communications | 1 USB port (USB 2.0, “B” type) 1 USB hub with 3 ports (USB 2.0, “A” type) to connect further Vanquish modules |
| Detection Mode | Records a single power value |
| For Use With (Equipment) | Vanquish HPLC/UHPLC systems |
| GLP Features | Predictive Performance functions: Gas filter change interval, service monitoring period, system parameters logged in the Chromeleon Chromatography Data System Audit Trail. |
| Gas Requirements | Nitrogen (recommended) or Compressed Air |
| Model | Vanquish CAD H |
| Range | Dynamic Range: Up to 4 orders of magnitude |
| Safety Features | Power-up diagnostics, inlet gas over-pressure, high evaporation temp, pump flow shutoff, fluid leak detection and safe leak handling |
| Temperature Control | Settable |
| Temperature Range | Ambient +5° to +100°C |
| Data Collection Rate | 200 Hz Max. |
| Type | Standard flow management |
| Unit Size | Each |
Vanquish CAD HP
| Specifications | |
|---|---|
| Communications | 1 USB port (USB 2.0, “B” type) 1 USB hub with 3 ports (USB 2.0, “A” type) to connect further Vanquish modules |
| Detection Mode | Records up to 4 unique power values |
| For Use With (Equipment) | Vanquish HPLC/UHPLC systems |
| GLP Features | Predictive Performance functions: Gas filter change interval, service monitoring period, system parameters logged in the Chromeleon Chromatography Data System Audit Trail. |
| Gas Requirements | Nitrogen (recommended) or Compressed Air |
| Model | Vanquish CAD HP |
| Range | Dynamic Range: Up to 4 orders of magnitude |
| Safety Features | Power-up diagnostics of detector functions, online-monitoring of diagnostic parameters, gas inlet overpressure relief valve, fluid leak sensing with safe leak handling, high-temperature shutoff, flood prevention (pump flow shutoff, internal leak valve and diverter valve) |
| Temperature Control | Ambient or Settable |
| Temperature Range | Ambient, 10 to 100°C |
| Data Collection Rate | 200 Hz Max. |
| Type | Integrated diverter valve for advanced flow management |
| Unit Size | Each |
Vanquish CAD FP
| Specifications | |
|---|---|
| Communications | 1 USB port (USB 2.0, “B” type) 1 USB hub with 3 ports (USB 2.0, “A” type) to connect further Vanquish modules |
| Detection Mode | 100 Hz Max. |
| For Use With (Equipment) | Vanquish HPLC/UHPLC systems |
| GLP Features | Predictive Performance functions: Gas filter change interval, service monitoring period, system parameters logged in the Chromeleon Chromatography Data System Audit Trail. |
| Gas Requirements | Nitrogen (recommended) or Compressed Air |
| Model | Vanquish CAD FP |
| Range | Dynamic Range: Up to 4 orders of magnitude |
| Safety Features | Power-up diagnostics of detector functions, online-monitoring of diagnostic parameters, gas inlet overpressure relief valve, fluid leak sensing with safe leak handling, high-temperature shutoff, flood prevention (pump flow shutoff, internal leak valve and diverter valve) |
| Temperature Control | Ambient or Settable |
| Temperature Range | Ambient, 35°C, 50°C, 70°C |
| Data Collection Rate | 100 Hz Max. |
| Type | Integrated diverter valve for advanced flow management |
| Unit Size | Each |
Vanquish CAD HP, Analog Output
| Specifications | |
|---|---|
| Communications | Requires installation kit for Analog Output |
| Detection Mode | Records a single power value |
| For Use With (Equipment) | Multiple HPLC/UHPLC systems |
| GLP Features | Predictive Performance functions: Gas filter change interval, service monitoring period, system parameters logged in the Chromeleon Chromatography Data System Audit Trail. |
| Gas Requirements | Nitrogen (recommended) or Compressed Air |
| Model | Vanquish CAD HP, Analog Output |
| Range | Dynamic Range: Up to 4 orders of magnitude |
| Safety Features | Power-up diagnostics of detector functions, online-monitoring of diagnostic parameters, gas inlet overpressure relief valve, fluid leak sensing with safe leak handling, high-temperature shutoff, flood prevention (pump flow shutoff, internal leak valve and diverter valve) |
| Temperature Control | Ambient or Settable |
| Temperature Range | Ambient, 10°C to 100°C |
| Type | Integrated diverter valve for advanced flow management |
| Unit Size | Each |
Vanquish CAD HP, Digital Output
| Specifications | |
|---|---|
| Communications | Requires installation kit for Analog Output |
| Detection Mode | Records up to 4 unique power values |
| For Use With (Equipment) | Multiple HPLC/UHPLC systems |
| GLP Features | Predictive Performance functions: Gas filter change interval, service monitoring period, system parameters logged in the Chromeleon Chromatography Data System Audit Trail. |
| Gas Requirements | Nitrogen (recommended) or Compressed Air |
| Model | Vanquish CAD HP, Digital Output |
| Range | Dynamic Range: Up to 4 orders of magnitude |
| Safety Features | Power-up diagnostics of detector functions, online-monitoring of diagnostic parameters, gas inlet overpressure relief valve, fluid leak sensing with safe leak handling, high-temperature shutoff, flood prevention (pump flow shutoff, internal leak valve and diverter valve) |
| Temperature Control | Ambient or Settable |
| Temperature Range | Ambient, 10°C to 100°C |
| Data Collection Rate | 200 Hz Max. |
| Type | Integrated diverter valve for advanced flow management |
| Unit Size | Each |
